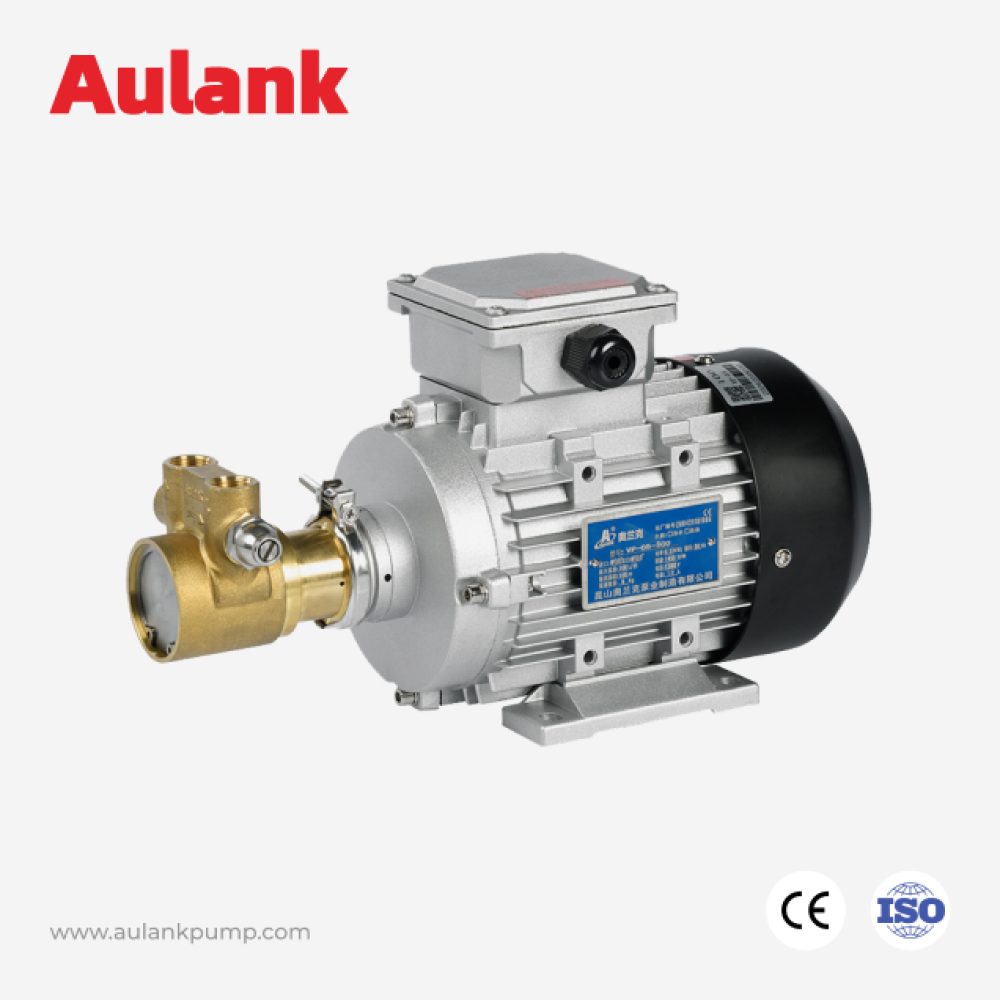

The VP Series Vane Pumps are mainly composed of pressurizing chambers, vanes, rotors, pump bodies, and motors. According to application requirements, pump body materials can be optional with stainless steel or brass; drive motors are available in single-phase, three-phase, explosion-proof, variable-frequency, and DC types. These pumps feature self-priming capability, high lift, small flow rate, precise structure, compact size, low noise, and exquisite appearance.
| Model | Diameter Inlet | Diameter Outlet | Motor Power (kW) | Motor Power (HP) | Voltage | Frequency (Hz) | Speed (r/min) | Max / Rated Head (m) | Max Capacity (L/h) | Pump Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| VP(E)-020(G)(S)-70 | G3/8″ | G3/8″ | 0.15 | 0.2 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 100 / 80 | 70 | 5 |
| VP(E)-033(G)(S)-100 | G3/8″ | G3/8″ | 0.25 | 0.33 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 160 / 120 | 100 | 8 |
| VP(E)-05(G)(S)-200 | G3/8″ | G3/8″ | 0.37 | 0.5 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 160 / 120 | 200 | 9.5 |
| VP(E)-05(G)(S)-300 | G3/8″ | G3/8″ | 0.37 | 0.5 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 160 / 120 | 300 | 9.5 |
| VP(E)-05(G)(S)-400 | G3/8″ | G3/8″ | 0.37 | 0.5 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 160 / 120 | 400 | 9.5 |
| VP(E)-07(S)-800 | G1/2″ | G1/2″ | 0.55 | 0.7 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 120 / 100 | 800 | 10.5 |
| VP(E)-07(S)-1000 | G1/2″ | G1/2″ | 0.55 | 0.7 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 120 / 100 | 1000 | 10.5 |
*The above characteristic testing is based on water transfer at normal speed under 20°C. The performance parameter error is approximately ±10%. Pump performance varies depending on the proportion and density of the liquid medium.
make table mobile friendly
(P)VP series pumps use a direct-coupled motor and pump body design with independently arranged bearing and water chamber components. The structure supports stable delivery under low-flow, high-head conditions and is suitable for metering, precision circulation, and continuous-duty applications.
(P)VP series pumps use a direct-coupled motor and pump body design with independently arranged bearing and water chamber components. The structure supports stable delivery under low-flow, high-head conditions and is suitable for metering, precision circulation, and continuous-duty applications.
| Thermal Conductivity Water | Ethylene Glycol | Working Temperature | Maximum Elevation | Max Withstand Pressure |
|---|---|---|---|---|
| +5°C ~ +90°C | -20°C ~ +90°C | -5°C ~ +40°C | 1000 m | 16 bar |
Laser Equipment Cooling, Charging Pile Cooling, Medical Devices, Plasma Cutting Machines, X-ray and Medical Laser Cooling Systems, Laboratory Equipment Cooling Circulation, High-Pressure Cleaning Equipment, Reverse Osmosis Systems, Coffee Machines, Beverage Dispensers, Garden Atomization Systems, etc.
